Commercial Garage Door Openers and Operators in Las Vegas

Signs you need this

• The motor runs but the door does not move, or moves a foot and stops
• The operator trips its overload after a few cycles on a hot afternoon
• The door will not close on the wall button unless someone holds it
• The chain hoist is the only thing still moving the door
• A new door or a busier dock has outgrown a light duty operator

Three kinds of commercial garage door opener

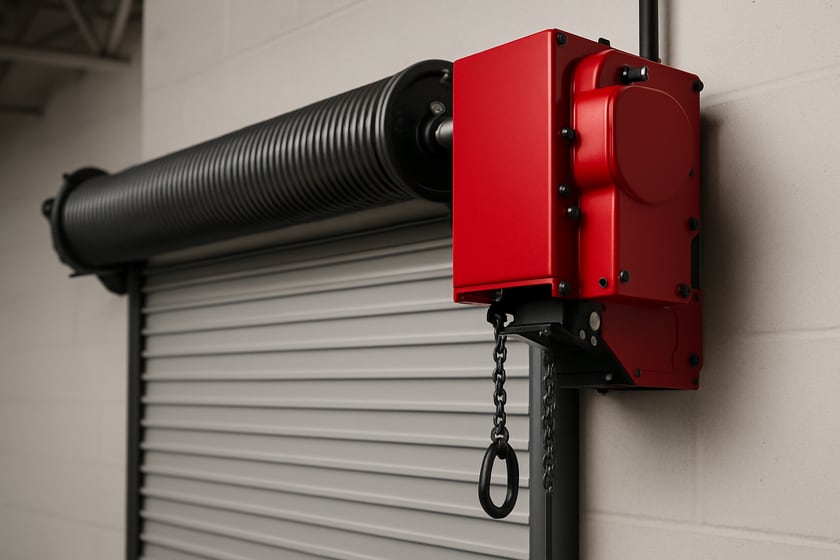

A jackshaft operator mounts beside the door shaft and turns it through a chain and sprocket. It is the standard drive for rolling steel doors and for sectional doors on high lift track. A hoist operator is a jackshaft operator with a manual chain hoist built in, so the door can still be raised by hand in a power outage. A trolley operator runs the door along a ceiling rail, the same idea as a household opener in a heavier duty housing, and it suits standard lift sectional doors. Choosing between them is a question of the door type, the track, and how the door has to behave when the power is off.

Duty cycle is the spec that matters

Operators are rated by how many cycles they can run in an hour and in a day. A light duty operator on a door that opens for every delivery will overheat, trip its thermal overload, and eventually burn its motor, and the fix is not a repair. It is the right duty rating for that door. Las Vegas makes this worse: an operator hanging in an unconditioned warehouse in August is already running hot before the first delivery, so its thermal overload has less headroom on every cycle. Continuous duty operators exist for exactly that door.

What usually fails, and what it costs the business

Worn clutch and brake assemblies, limit switches that have drifted so the door stops short or drives into the floor, control boards, stretched drive chains, and motors run past their duty rating. Most of these are repairable parts. What is not repairable is a door left running on a failing operator until the drive strips. The door is then hanging on its counterbalance alone, and if that spring is tired as well the curtain comes down and the repair becomes a door job too.

Controls and safety

A three button station gives open, close and stop. Whether the close button has to be held, or a single press closes the door, depends on the entrapment protection installed. Under the current UL 325 standard, an operator that closes on a single press needs monitored entrapment protection, such as photo eyes or a sensing edge on the bottom bar, and an operator without it is limited to constant pressure to close. We install and test both, and we will tell you which your door is set up for before anyone relies on it.
