Broken garage door spring repair, replacement and installation in Winchester

Published June 9, 2026

What makes Winchester garages hard on door springs

If you live in Winchester, you are in that strip of older Las Vegas valley neighborhoods just east of the resort corridor. Many of the homes here were built in the 1950s through the 1970s, including parts of the Paradise Palms area that Clark County highlights as early master planned development. That means a lot of original or early replacement garage doors, single car bays, manual lifts and doors that have seen decades of daily use.

Garage door springs in these homes work every time the door opens and closes. According to the Door and Access Systems Manufacturers Association (DASMA), springs are rated in cycles, which means one full open and close is one cycle, not in years. A standard residential spring system is commonly designed to meet a minimum cycle rating described in ANSI/DASMA 103 for counterbalance systems, and heavy daily use will burn through those cycles faster than occasional use. In Winchester, many garages are also attached or close to the living space, so people often use the overhead door like a front door multiple times a day.

Local conditions add to the wear. Summer heat in the 89109, 89121 and 89169 ZIP codes can thin lubricants, dry out older bearings and harden the bottom seal, which makes the door drag more as it moves. Wind driven dust can work its way onto the tracks and into rollers, especially on rear alley facing doors that get more grit and vehicle traffic. All of that friction makes your springs work harder to lift the same door weight and can shorten their usable cycle life.

Because a spring failure often shows up as a door that suddenly will not open or feels extremely heavy, many Winchester homeowners first run into the issue when they are trying to leave for work or bring a car in at night. If your door was already older or out of balance, that failure can seem to come out of nowhere even though the springs have been slowly wearing for years. Knowing what type of spring system your door has gives you a head start when you call a professional about garage door spring repair.

• Older Winchester homes often have original or early replacement doors
• High daily use burns through spring cycles faster than light use
• Heat and dust in Winchester increase friction on moving parts
• Rear alley garages tend to collect more grit on tracks and rollers

How to tell a torsion spring from an extension spring in Winchester garages

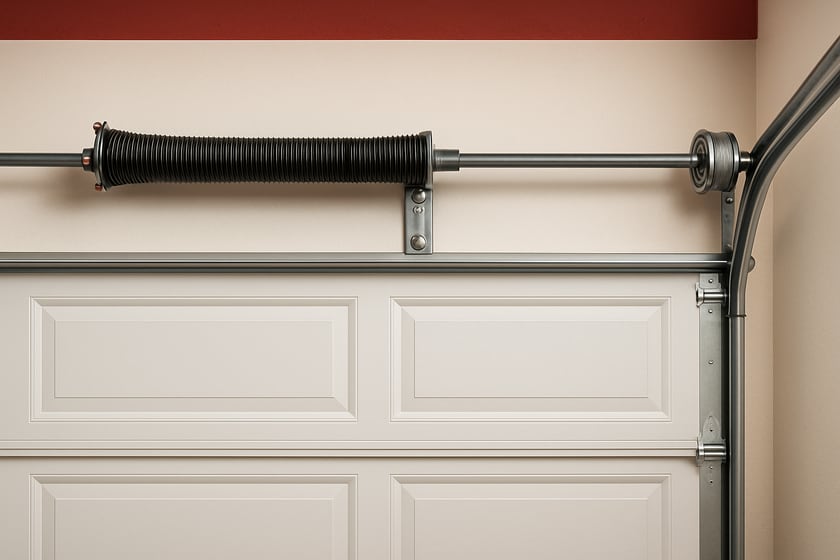

When you look at your garage door hardware, you will usually see one of two main spring setups. A torsion spring system sits above the top of the door opening on a metal shaft that runs across the width of the door. The springs themselves are tightly wound coils on that shaft, with cable drums at each end and lift cables that run down to the bottom corners of the door. From ground level in a Winchester single car garage, you will often see one or two large coils centered or offset above the header.

An extension spring system looks different. Instead of being wrapped around a shaft above the opening, extension springs sit along the horizontal tracks that run into the garage, generally over each side of the door. These springs stretch and contract as the door opens and closes. DASMA safety guidance notes that any door that uses extension springs must also have a safety cable running through the middle of each spring, anchored at both ends, to keep a broken spring from flying loose.

In older Winchester neighborhoods, especially in 1960s era tracts, you can still find a mix of systems. Some small single car garages with lightweight sectional doors use extension springs, while heavier or newer doors are more likely to have torsion springs. There are also still one piece tilt up or wood doors around the area, which can have different counterbalance setups that a professional should evaluate. You do not have to know the exact type before you call, but a simple description, such as "the big coil above the door snapped" or "the spring along the side by the track broke," helps a technician arrive prepared.

No matter which kind of spring you have, it is important to remember that both torsion and extension systems store a significant amount of energy. The springs, lift cables, drums and bottom brackets are all under tension that is designed to balance the full weight of the door. That is why spring work, cable work or bottom bracket work is never a DIY project, regardless of your comfort level with tools.

• Torsion springs sit on a shaft above the door opening
• Extension springs run along the horizontal tracks on each side
• Extension springs should always have containment cables installed
• Older Winchester garages may still use one piece or tilt up doors

Why garage door springs fail sooner than you expect here

Many Winchester homeowners are surprised when a spring breaks on a door that still looks decent. The main reason is that springs do their work quietly until they reach the end of their cycle life. DASMA's Technical Data Sheet 190 explains that spring life is affected by factors such as wire diameter, coil diameter, the number of active coils, how far the spring deflects each cycle, the amount of tension set at installation, temperature, lubrication and how often the door is used.

In practical terms, the more times you use the door each day, the faster you use up those cycles. A household that opens and closes the garage six or eight times a day will work through spring cycles several times faster than someone who only uses it in the morning and evening. The hot, dry conditions in this part of Clark County can also affect lubrication and metal fatigue over time, especially in garages that are not insulated or that face direct sun.

Winchester also has more older wood and manual lift doors than some of the newer master planned suburbs. A heavy wood or uninsulated metal door without modern rollers and track alignment can put additional strain on the counterbalance system. If the door is out of balance, even slightly, the opener has to work harder and the springs may be operating outside their ideal range, which affects their performance compared with the baseline assumptions in standards like ANSI/DASMA 103.

When a spring reaches the end of its life, the break is usually sudden. On torsion systems you may see a visible gap in the coil above the door. On extension systems you might see a spring hanging loose along the track or a safety cable holding a broken piece in place. The door may feel extremely heavy or will not lift more than a few inches. These are signs to leave the door closed, avoid running the opener on it and call for professional garage door spring repair rather than trying to free it up yourself.

• Spring life is measured in open and close cycles, not years
• High daily use in garage heavy households wears springs faster
• Heat and dry air can affect lubrication and metal fatigue
• Older, heavier doors in Winchester can strain spring systems

Why both torsion springs should be replaced together on Winchester doors

Many two car width doors in Winchester use a pair of torsion springs mounted on the same shaft above the opening. When one of these springs breaks, the door often becomes extremely heavy on that side and may bind if someone tries to lift it. DASMA's safety tips advise that when one torsion spring on a two spring system fails, both should be replaced, even if the other has not broken yet. The logic is simple: both springs have carried the same number of cycles, so the unbroken one is usually near the end of its life as well.

Replacing only the broken spring can leave the door out of balance. The new spring will have a different torque profile than the worn one, which can cause uneven lifting, strain on the shaft and drums, and extra wear on cables and rollers. It also sets you up for a second service call when the older spring fails sooner than expected. A matched set, sized for your specific door weight and track layout, gives you smoother operation and makes it easier for the technician to set correct tension along the full width of the door.

In Winchester, where rear alley access and tight driveways are common, a door that does not lift evenly can also be a day to day hassle. Uneven lift can cause the door to rub on one side, drag against the jamb or stop short of fully open. That is more than an annoyance if you are trying to pull a vehicle in from a narrow alley or move large items through a short opening.

Because torsion spring selection and winding must match the door's construction and hardware, a professional technician will measure the door, drum size and cable layout before recommending a spring set. ANSI/DASMA 103 lays out standards for counterbalance systems on residential sectional doors, and a trained tech uses those principles to match cycle rating and torque to how you actually use the door. This is not something that can be done safely or accurately with guesswork or generic parts.

• Two spring doors should get both torsion springs replaced together
• Mismatched springs can cause uneven lifting and extra wear
• A matched set keeps the door balanced across its full width
• Tight Winchester alleys make smooth, full opening especially important

What a written garage door spring repair quote should include in Winchester

When you are comparing garage door spring repair options in Winchester, the written price you receive should do more than list a single line item. Because springs are part of a larger counterbalance system, the quote should spell out what components are being replaced and what checks are included. That way you understand what you are paying for before any work starts and can compare options on more than just a bottom line.

A clear quote typically identifies whether the system is torsion or extension, how many springs are being replaced and whether new hardware such as center or end bearings, cable drums or lift cables are included. On extension systems, it should state whether safety cables are present and, if needed, whether new ones will be installed, which aligns with the containment guidance from DASMA. For Winchester's mix of older garages, it is also reasonable to see line items for track or roller service if those are worn enough to affect how the new springs perform.

Timing and visit details matter, too. Look for notes on whether same-day emergency service is available in your part of Winchester and whether there is a trip fee. At Prestige Garage Door Services, we provide a $0 trip fee and free inspections, with the price given upfront before work starts, so there are no surprises at the end of the job. For many homeowners and landlords in the 89109, 89121 and 89169 ZIP codes, clear timing is just as important as the parts list, especially when a stuck door blocks vehicles.

Last, make sure the quote explains what type of warranty applies to the work and how future maintenance is handled. A properly installed spring system should include some form of workmanship warranty, with terms explained per job, and a recommendation for periodic lubrication and balance checks. If the technician suggests a higher cycle spring because you cycle the door often, you can ask how that choice fits within the guidance from DASMA Technical Data Sheet 190 on cycle life. These questions help you choose a long term solution rather than a short term patch.

Why garage door spring work in Winchester is never a DIY project

It can be tempting to treat a broken spring as just another home repair, especially in older Winchester garages where you already handle plenty of small fixes yourself. Garage door springs are different. Both torsion and extension springs, along with lift cables, drums and bottom brackets, store and transfer the full weight of the door. When they are wound, unwound or disconnected incorrectly, that stored energy can release suddenly and cause serious injury or damage.

DASMA's standards for counterbalance systems and its safety tips are written with professional installation in mind. Matching the right spring to a specific door involves measuring the door weight, the drum size, the track layout and the headroom available, then calculating the torque needed across the full travel range. A miscalculated or poorly installed spring can leave the door out of balance, which in turn can overload the garage door opener or cause it to fail the reversal tests that are tied to federal safety rules in 16 CFR Part 1211, which incorporates UL 325.

For Winchester homeowners, landlords and HOA boards, the better line is to separate safe homeowner checks from professional only work. Safe checks include looking for a visible break or gap in a torsion spring, noting if an extension spring is hanging loose, operating the door by hand only when you know the springs are intact to feel for balance and keeping rollers, hinges and tracks visually clean. Any time a spring is broken, a cable is slack, a door is off track or the opener struggles to move the door, it is time to stop using it and call a professional.

Prestige Garage Door Services is a family owned company with 35+ years of experience in the trade, licensed, bonded and insured under Nevada contractor license 0091256, classification C-3D Overhead Doors. We service all makes and models across Winchester and the broader Paradise area, offer 24/7 emergency service with same-day emergency service available, and back our work with warranties whose terms are explained per job. When you schedule our garage door spring repair service, a technician performs a free inspection, reviews your options, provides upfront pricing before any work starts and explains how to keep your door running smoothly after the repair.
