Torsion vs Extension Springs: When a Las Vegas Home Should Choose Each

Published October 9, 2026

What is the real difference between torsion and extension springs on a Las Vegas garage door?

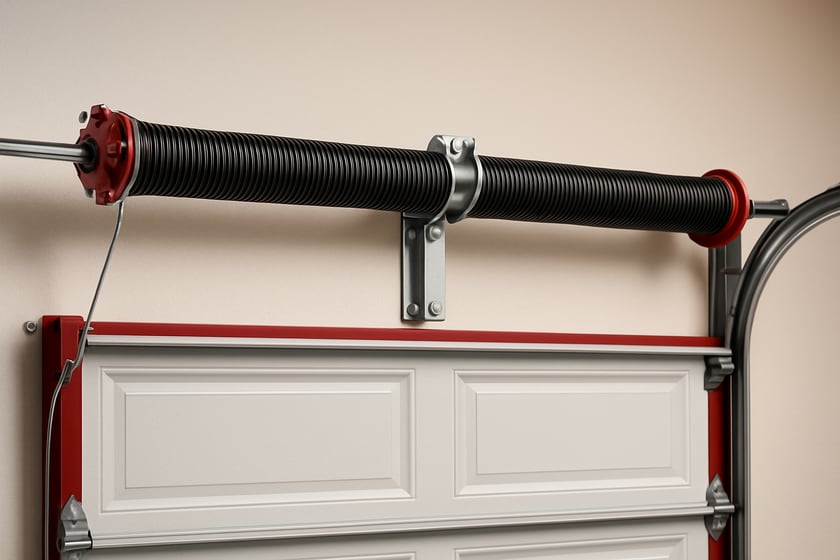

Both torsion and extension springs are counterbalance systems that help your garage door feel light enough for the opener to move it. They simply go about the job in different ways. A torsion spring mounts on a metal shaft above the door opening and twists to store energy. Extension springs usually sit along the horizontal track or above it and stretch as the door moves. In newer Las Vegas subdivisions, torsion setups are now very common, while many older homes in areas like Spring Valley or Green Valley still have extension springs.

Industry standards such as ANSI/DASMA 103 describe the whole counterbalance system, which includes springs, cables, and drums working together. Each door is designed for a specific spring size and type so that when it is closed the system holds a known amount of torque or stretch. The Door & Access Systems Manufacturers Association notes that standard residential springs are typically rated for a minimum of 10,000 open-and-close cycles under that standard. From the homeowner's side, you mainly notice the outcome: a torsion system tends to feel smoother, with more controlled travel, while an extension system can feel a little more bouncy when the door starts or stops.

The desert climate around Las Vegas also plays a role. The dry air and temperature swings are hard on metal parts and lubricants. A torsion shaft concentrates most of the work in a single assembly above the door, which is fairly sheltered. Extension springs expose more moving coils along the sides of the garage, where wind-blown grit can work its way in. Both systems can be safe and effective when installed correctly, but their differences show up over time in how they handle wear, balance and maintenance.

• Torsion springs twist on a shaft above the door opening.
• Extension springs stretch along or above the horizontal tracks.
• Both types must be sized to the specific door weight and hardware.
• Las Vegas climate puts extra wear on exposed moving coils and hardware.

How safety and cycle life compare: which spring type is usually better for families?

Safety and longevity are the two big reasons many homeowners ask whether it is worth switching from extension to torsion springs. DASMA's Technical Data Sheet 190 explains that spring cycle life is very sensitive to proper sizing and installation. Using a spring that does not match the door weight, winding it with the wrong number of turns, or allowing the coils to scrape and "snake" along the shaft can all shorten its service life and raise the risk of a sudden failure. These concerns apply to both torsion and extension designs, but torsion systems generally allow finer control over torque and are easier for a technician to tune precisely.

ANSI/DASMA 103 sets a baseline that standard residential counterbalance systems should meet at least 10,000 cycles when correctly specified. That number is not a guarantee in years because it depends on how often the door is used, but it gives you an idea of what the hardware is built to handle. A torsion setup can often be configured with higher cycle springs when needed, for example on a busy household garage, simply by selecting different wire sizes and lengths. Extension systems are more limited in this way and usually focus on the standard rating.

Safety features differ between the two types. DASMA's homeowner safety tips stress that extension springs should always have safety cables threaded through them. Those cables help restrain the spring if it breaks under tension. Torsion springs, mounted on a shaft with cable drums at the ends, are already contained by that shaft and the brackets. In both cases, the guidance is clear that springs and cables are high tension components that should never be installed, adjusted, or removed by a homeowner. Trained door system technicians use specific winding tools and follow manufacturer instructions, like those in Clopay and Amarr installation manuals, to keep the system within its design limits.

• ANSI/DASMA 103 calls for minimum 10,000-cycle spring systems.
• DASMA TDS-190 warns that wrong spring size or turns cut life short.
• Extension springs should always include safety cables for containment.
• Both spring types must only be serviced by trained technicians.

When torsion springs are usually the right choice for a Las Vegas home

For many Las Vegas homeowners, a torsion system is the better long-term setup, especially when planning a full garage door spring repair. One reason is control. Because the torsion spring sits on a solid shaft with cable drums, a technician can distribute torque evenly across the door width. That helps the door travel straight, which is important in slab-on-grade garages where any twist in the panels can drag on the tracks or wear out rollers early. Torsion designs also tend to be quieter, something you notice in homes with bedrooms above or next to the garage.

Another advantage is durability when correctly configured. DASMA TDS-190 points out that matching the spring's specifications to the exact counterbalance requirement and applying the correct number of turns is critical. Torsion systems are designed around that matching process, with color coding tied to spring size as referenced in ANSI/DASMA 103. When a licensed technician replaces torsion springs, they can often choose higher-cycle springs to better suit a household that uses the garage as the main entry, which is common in areas like Summerlin, Henderson, and North Las Vegas subdivisions.

Safety and maintenance are also strong points for torsion. The spring coils are contained around the shaft above head height. While homeowners should never touch that assembly, it is easier for a professional to inspect for gaps, rust, or distortion and to keep the bearings and drums aligned. Because the lift cables run off the ends of the shaft, there is less side-to-side pull that can stress the tracks. In a climate with summer heat that thins lubricants and wind that pushes grit everywhere, a well set torsion system gives you a little more margin before dust and wear start to show up in how the door moves.

• Better balance across wide or heavy residential doors.
• Option for higher-cycle springs when the door sees heavy use.
• Quieter, smoother operation near bedrooms and living spaces.
• Contained design that simplifies professional inspections.

When it can still make sense to keep or install extension springs

Extension springs are not automatically wrong just because torsion springs are popular. In some Las Vegas garages, especially older construction, the framing and headroom favor staying with extension hardware. These springs mount along or above the horizontal tracks, which can be useful when there is not enough space above the door opening for a torsion shaft and spring. In certain mid-century layouts found in parts of Paradise and East Las Vegas, the garage ceiling height or beams leave very little room to add extra hardware above the header.

Cost and complexity of conversion also matter. If a door has a correctly sized, well installed extension system with proper safety cables and compatible hardware, a technician may recommend replacing the existing springs in kind rather than rebuilding everything around a torsion shaft. DASMA's safety guidance emphasizes that replacing both springs when one breaks and verifying proper balance are key steps, regardless of type. What matters most is that the extension springs are matched to the door weight and installed so they stretch evenly without rubbing or bowing.

Some homeowners prefer to defer a full conversion until they are replacing the door itself or doing other renovation work. That can be a reasonable plan as long as the current extension system is kept safe. This includes monthly visual checks for rust, gaps in the coils, or stretched hardware, as suggested in DASMA's homeowner tips, and prompt professional service at the first sign of trouble. In our hot, dusty climate, any exposed moving spring will benefit from periodic inspection, and extension systems simply have more exposed metal to watch.

• Limited headroom over the door opening can favor extension hardware.
• Existing framing may not easily accept a torsion shaft and center bearing.
• A sound extension system with safety cables can be maintained safely.
• Full conversion can be timed with a future door replacement project.

Should you convert from extension to torsion during garage door spring repair in Las Vegas?

The conversion question comes up a lot when a spring breaks and the door will not move. From a safety and performance standpoint, many homes benefit from upgrading to torsion springs at that point. DASMA's technical sheet on spring life explains that improper installation practices, like backward winding or excessive stretch, can sharply reduce life and increase the chance of an unexpected failure. Moving to a torsion system gives the technician a chance to rebuild the counterbalance from the center out, match the new springs to the door, and set the correct number of turns from the start.

That said, a conversion is not always necessary. The deciding factors usually include headroom, current hardware condition, and how the door is used. For example, if your Green Valley home sees only a few garage cycles each day and the existing extension hardware is otherwise in good condition, replacing the springs with new, properly sized ones and keeping the safety cables in place may be a sensible path. If you live in a newer Henderson or Aliante tract where the framing already anticipates a torsion assembly, converting during garage door spring repair is often straightforward and gives you a more modern setup.

Regardless of direction, the work itself is not a DIY project. Manufacturer manuals from companies such as Clopay and Amarr are clear that removing, installing, or adjusting torsion springs, extension springs, related fasteners, or bottom brackets can cause severe injury if done incorrectly. They direct that these steps be performed only by qualified technicians. In practical terms, your job as a homeowner is to stop using the door when a spring issue shows up, keep people and vehicles away from the opening, and bring in a licensed, bonded and insured garage door contractor to lay out your options.

• Broken spring events are a natural time to consider conversion.
• Headroom and framing often decide how simple a conversion will be.
• Light-use doors may justify staying with a safe extension system.
• Manufacturer manuals reserve spring work for trained technicians.

How to talk with a technician and what to expect from garage door spring repair

Once you decide to repair or upgrade your spring system, a clear conversation with the technician helps you get the right outcome. ANSI/DASMA 103 calls for springs to be matched to door weight, height, and drum size, and it requires color coding to help identify the correct parts. It is reasonable to ask which spring size is being used, what cycle rating it is designed for, and how that fits your household's daily use. You can also ask whether your current hardware allows any cycle-life options or if it is limited by mounting space.

A professional visit for garage door spring repair in Las Vegas usually starts with a full inspection. The technician will confirm the door weight and balance, check the cables and drums, and inspect brackets and fasteners to make sure they are attached to solid framing, as Amarr's instructions remind installers to do. They will also look for signs of past mis-adjustment, such as stretched extension springs, loose winding cones, or cables that have been running over the edge of the drums. This assessment shapes the recommendation to repair in kind or convert the system.

From there, you should receive upfront pricing before work starts and a clear explanation of what is included, such as new springs, related hardware, and any adjustments. With a family-owned contractor like Prestige Garage Door Services, which is licensed, bonded and insured under Nevada contractor license 0091256, classification C-3D Overhead Doors, you can also ask about warranties on the work and whether financing is available for larger projects. Because springs and cables are under high tension, your role during the work is mainly to keep the area clear, wait for the technician to finish, then review how the door operates afterward and what ongoing visual checks they recommend within DASMA's homeowner guidelines.

• Ask which spring size and cycle rating will be installed.
• Have the technician confirm door weight and hardware condition.
• Expect upfront pricing before any repair or conversion begins.
• Keep the garage clear while high-tension work is being done.
