Broken garage door spring repair, replacement and installation in Southern Highlands

Published May 26, 2026

Why so many garage door springs are failing now in Southern Highlands

If you live in Southern Highlands, you may notice that neighbors are starting to talk about broken garage door springs all at once. This master planned community south of the 215 Beltway was largely built in the late 1990s and 2000s, which means many garage doors and their original springs are the same age. Standard residential springs are typically designed to meet a minimum cycle life of about 10,000 open and close cycles under ANSI/DASMA 103, as summarized in DASMA guidelines. When you spread those cycles across daily use over many years, it is not surprising that entire streets of doors begin to reach the end of their spring life together.

Southern Highlands is also part of the broader Enterprise area, where most homes are built on slab-on-grade foundations with attached garages that see regular daily use. Every time you leave for work, bring kids to activities or open and close the door for deliveries, you are using up part of that cycle life. DASMA Technical Data Sheet 190 explains that spring cycle life is affected by factors like wire diameter, coil diameter, number of active coils, and how often the door is used. Our desert climate adds heat that can dry out lubrication, and wind can blow dust into moving parts. All of this means that when a spring finally breaks in your 89141 home, you are not alone, and it is a sign that the metal has simply reached the natural end of its design life.

• Most Southern Highlands garage doors are roughly the same age, so springs wear out in the same time frame.
• Standard residential springs are often rated around 10,000 cycles per ANSI/DASMA 103.
• Daily in and out traffic in car-dependent neighborhoods quickly uses up spring cycles.
• Heat and dust in the Las Vegas Valley can speed up wear if springs are not well lubricated.

How to tell a torsion spring from an extension spring on your Southern Highlands garage

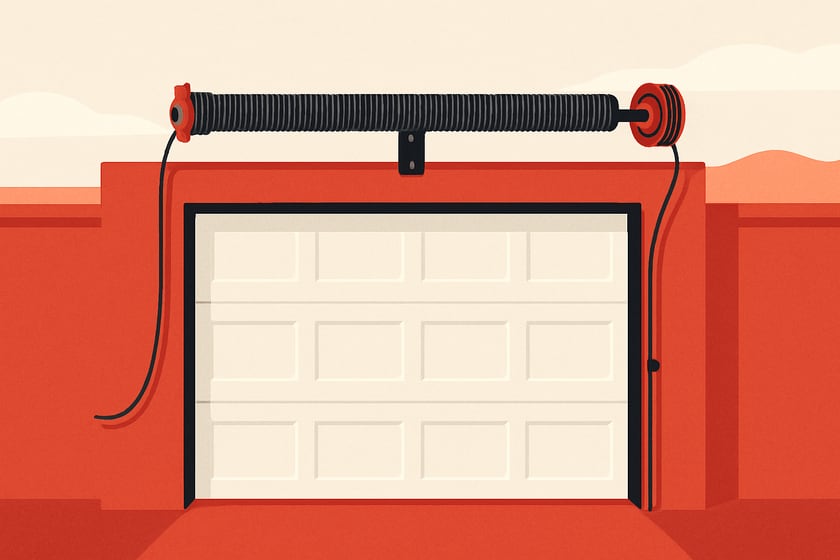

Before you call for garage door spring repair in Southern Highlands, it helps to know which spring system your door uses. Most newer tract homes in Enterprise, including many in Southern Highlands, are built with sectional doors that use torsion springs. A torsion spring is a heavy metal coil mounted on a shaft directly above the top of the garage door. When the door is closed, the spring is wound tight, storing energy that helps lift the door when it opens. If you look up and see a solid tube or shaft with one or two large coils in the middle or toward the ends, that is a torsion setup.

Some homes, especially when builders used different hardware packages, may have extension springs. These are long, thinner springs that run alongside the horizontal tracks on each side of the door. When the door is closed, extension springs are stretched out parallel to the ceiling, and when the door opens they contract. They should have safety cables threaded through them to contain them if they break. DASMA Technical Data Sheet 171 explains that springs are also color coded to help manufacturers identify wire size, but those colors alone are not enough information to select the right replacement. For homeowners, the safest and most useful step is simply to note whether the spring is above the door (torsion) or along the tracks (extension) and then leave the detailed sizing and replacement to a professional.

• Look above the door for a single bar with one or more large coils to spot torsion springs.
• Look along the horizontal tracks near the ceiling for long, skinny springs to spot extension springs.
• Check for safety cables running through any extension springs to help contain a break.
• Do not rely on paint color stripes on the springs to order parts, since color alone is not a full specification per DASMA guidance.

Why garage door springs fail in the Las Vegas climate and how cycle life works

Garage door springs do not usually fail because of a single dramatic event. In most Southern Highlands garages, failure is the end result of many normal open and close cycles over years. DASMA's Technical Data Sheet 190 describes how springs are designed for a target cycle count, with 10,000 cycles as a common baseline for residential use. Higher cycle springs are available that are designed to last longer, but most original builder packages focus on meeting the standard minimum rather than extending life significantly. The more you use the door each day, the faster those cycles are consumed.

Our local weather plays a role too. While Technical Data Sheet 190 notes that temperature and lubrication both affect performance, you see that first hand in the Las Vegas Valley. Summer heat can thin out lubricants and dry out metal, while wind-driven grit can collect on coils and around bearings. If springs are never lubricated, they can bind slightly as they wind and unwind, which adds stress to the metal. Over time, microscopic cracks form and eventually result in a visible break, often leaving a clean gap in a torsion spring or a dangling extension spring. Once a spring has broken, the door is no longer safely balanced, and the opener is not designed to lift the full weight of an unbalanced door. At that point, professional spring repair is the only safe path.

• Springs are designed around a specific cycle life such as 10,000 open and close cycles per DASMA guidance.
• Heavier daily use in households with multiple drivers uses up cycles faster.
• High temperatures and lack of lubrication increase friction and stress on the coils.
• Dust and grit in Southern Highlands garages can accelerate wear if not cleaned and lubricated periodically.

Why both springs are usually replaced together on a two spring Southern Highlands door

Many two car garages in Southern Highlands have sectional doors with two torsion springs mounted above the opening, especially on wider and heavier doors. Those springs are sized to work together as a matched pair, sharing the lifting load. Because both springs have been through nearly the same number of open and close cycles since the home was built, they tend to age in step. When one spring finally breaks, the other is usually close behind it in terms of fatigue. Replacing only the broken spring can leave an older spring sharing the work with a new one, which can create an imbalance in how the door is supported.

Replacing both springs at the same time helps restore even support and gives you a fresh cycle life on the system. DASMA guidance on counterbalance systems, reflected in ANSI/DASMA 103, highlights the importance of matching springs, cables, drums and door weight so the door stays properly balanced. A professional will calculate or confirm the correct spring size for the door, then replace both torsion springs or both extension springs on a two spring setup so they match. This is not a place to cut corners. The labor involved in safely unwinding, removing, installing and winding springs is essentially the same whether one spring or both are changed, so it is generally more practical and safer to have them done together rather than waiting for the second one to fail and being stranded again.

• Two spring systems are designed so both springs share the lifting load.
• When one spring breaks, the other usually has similar wear and may fail soon.
• Matching springs help keep the door balanced and reduce strain on the opener.
• Professional technicians typically recommend replacing both torsion or both extension springs together on a two spring door.

What a written price for garage door spring work should list in Southern Highlands

When you are comparing garage door spring repair options for a home in Southern Highlands, focus less on a quick verbal quote and more on what is included in a clear written price. Because actual numbers depend on your specific door size, weight, spring type and hardware condition, a good approach is to make sure the written price lists the key details: the type of spring system (torsion or extension), the number of springs being replaced, and the cycle rating of the new springs. DASMA Technical Data Sheet 190 and ANSI/DASMA 103 explain how cycle ratings are central to spring design, so it is reasonable to ask what cycle life the new springs are expected to provide.

The written price should also describe any related parts and labor. This includes new cables or drums if they are worn, bearing plates, center and end bearings, and any rebalancing or safety checks. Because federal rules in 16 CFR Part 1211 require that openers manufactured on or after January 1, 1991 meet UL 325 entrapment protection standards, many professionals will also test the opener's safety reversal and photo eyes after spring work. At Prestige Garage Door Services, we provide upfront pricing, which means the price is given before work starts, along with a free inspection and a $0 trip fee. That way you know what is being done to your 89141 garage and why, before anyone touches the springs.

• The written price should state whether your system uses torsion or extension springs.
• It should list how many springs will be replaced and whether both springs on a two spring door are included.
• It should note the cycle rating of the replacement springs where available, since cycle life is a key design factor per DASMA.
• It should include related hardware and labor, such as cables, bearings and balance checks, plus any opener safety tests required by modern standards.

Why garage door spring replacement is never a DIY project in Southern Highlands

It can be tempting to search online for parts and try to tackle broken spring replacement yourself, especially in a neighborhood where many homes were built at the same time and friends are talking about their experiences. However, both torsion and extension spring systems store a significant amount of energy to lift the full weight of a garage door. That energy is held in tension or torsion and is released suddenly if a spring is mishandled. DASMA standards for counterbalance systems are written with this in mind, calling for properly matched springs, cables and drums so the system stays under control. Without the right tools, training and procedures, attempting to wind or unwind springs can lead to severe injury or damage.

Extension springs that are not equipped with proper containment can also create hazards if they snap, which is why modern systems include safety cables threaded through the coils. Similarly, lift cables, bottom brackets and cable drums are all connected to the same high tension system and are not suitable for DIY work at any skill level. What homeowners in Southern Highlands can safely do is limited to visual checks: observe whether a torsion spring has a visible gap, listen for unusual noises, test the opener's safety reversal using a small piece of wood once the door is operating normally, and keep photo eye sensors clean. For any actual repair or replacement of springs, cables or related hardware, the safest choice is to book professional garage door spring repair with a licensed, bonded and insured contractor.

• Torsion and extension springs store high energy and can release it suddenly if mishandled.
• Lift cables, drums and bottom brackets are all part of the same high tension system and are not DIY.
• Professional technicians have specialized tools and training to safely wind and unwind springs.
• Homeowners should limit themselves to visual checks and safety tests, not mechanical adjustments.

How safety standards and opener checks fit into spring repair for Southern Highlands homes

Any time springs are repaired or replaced on a Southern Highlands garage door, it is a good opportunity to look at the opener and safety features as a whole system. Federal rules in 16 CFR Part 1211, enforced by the Consumer Product Safety Commission, require that automatic residential garage door openers manufactured on or after January 1, 1991 comply with UL 325 entrapment protection requirements. Openers made on or after January 1, 1993 must also include a secondary safety device such as photoelectric sensors. UL Solutions notes that these systems rely on an inherent reversal feature and an external device so the door will reverse if it meets an obstruction.

After spring work, a technician should confirm that the door is properly balanced, that the opener can lift it without strain, and that the photo eyes are aligned and functioning. Homeowners can help by keeping the sensor lenses clean and making sure nothing is stored in front of them. If your opener is older and lacking modern safety features, the technician may suggest upgrade options, but the immediate priority during spring repair is safe operation of the existing system. Prestige Garage Door Services services all makes and models and includes safety checks as part of a thorough visit, so your Southern Highlands door, springs and opener are working together in line with current standards.
